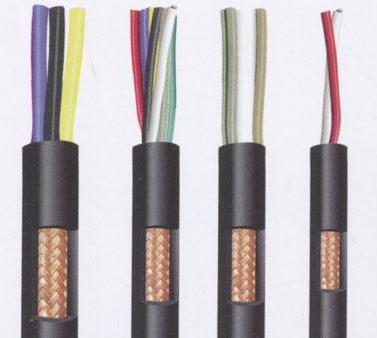

Control Cable with PVC Insulation and Sheath for Ship

Http://www.ahzdh.com     Time: 11/05/10 14:32

It is used for the circuit insensitive to interference of AC rated voltage 250V or lower for ships, offshore platform and other building over water.

Executive standard: GB9332-88

Type, Description and Installation Requirements


Type

Description

Installation requirements

CKVV/DA

Control cable with PVC insulation and sheath for ship



CKVV80/DA

Control cable with PVC insulation and sheath, bare copper wire braiding and armoring for ship

CKVV82/DA

Control cable with PVC insulation and sheath, copper wire braiding and armoring for ship

CKVV90/DA

Control cable with PVC insulation and inner sheath, bare steel wire braiding and armoring for ship

CKVV92/DA

Control cable with PVC insulation and inner sheath, PVC outer sheath, steel wire braiding and armoring for ship

CKJV/DA

Control cable with XLPE insulation and PVC sheath for ship



CKJV80/DA

Control cable with XLPE insulation and sheath, bare copper wire braiding and armoring for ship

CKJV82/DA

Control cable with XLPE insulation and PVC sheath, copper wire braiding and armoring for ship

CKJV90/DA

Control cable with XLPE insulation and PVC inner sheath, bare steel wire braiding and armoring ship.

CKJV92/DA

Control cable with XLPE insulation and PVC inner sheath, PVC outer sheath, steel wire braiding and armoring for ship

Technical Requirements:

    • Cable should bear voltage test of AV 1500V or DC 3600V for 5min
    • Vertical burning test performance for single piece shall meet the requirement of GB2951.19 standard
    • Insulated resistance constant is no less than 36.7MΩ.km at 20℃ for CKV series cable and 3670 MΩ.km at 20℃ for CKJ series cable.
