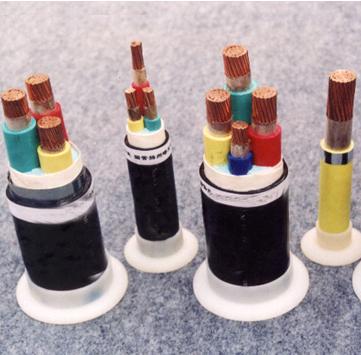

High Temperature Resistance (Flame Resistance) Power Cable

Http://www.ahzdh.com     Time: 11/07/10 09:42

  It is used as power transmission cable for electric equipments of rated voltage 0.6/1kV or lower in bad environment or that with high temperature.

Executive standard: enterprise standard

Performance in Usage:

  1. Rated voltage U0/U: 0.6/1kV
  2. Max. working temperature allowed by cable is 200℃ for cable with fluoroplastic insulation and sheath, 105℃ for cable with fluoroplastic insulation, 105℃ heat resistance and PVC sheath, and 180℃ for cable with fluoroplastic insulation and silicon rubber sheath.
  3. Max. temperature of cable conductor is no more than 250℃ during short circuit(The longest lasting time is no more than 5s)
  4. Temperature for installation is no less than -15℃
  5. Bending radius of cable as follows:

It is no less than 20 times that of cable outer diameter for cable with single core
It is no less than 15 times that of cables outer diameter for cable with 3 cores

  1. Power cable with fluoroplastic insulation and sheath has good features of chemical corrosion resistance, high temperature resistance and flame retardance

Type and Description:


Type

Description

FF

High temperature resistant power cable with F46 insulation and sheath

FF22

High temperature resistant power cable with F46 insulation and sheath, steel tape armoring

(ZR)-FG

High temperature resistant power cable with F46 insulation(flame retardant) and silicon rubber sheath

(ZR)-FG22

High temperature resistant power cable with F46 insulation(flame retardant), silicon rubber sheath and steel tape armoring

(ZR)-FV

High temperature resistant power cable with F46 insulation(flame retardant), 105℃ heat resistance and PVC sheath

(ZR)-FV22

High temperature resistant power cable with F46 insulation(flame retardant), 105℃ heat resistance, PVC sheath and steel tape armoring.

Specification of Cable
“Core number * nominal cross section” stands for cable specification. Please see the following table for core number and nominal cross section.

Type

Core number

Nominal cross section area(mm2)

FF

1,2,3,4,5,3+2,3+1

1.5~95

FF22

2.5~70

(ZR)-FG, (ZR)-FV

1.5~240

(ZR)-FG22, (ZR)-FV22

2.5~240
